Free weld-on bolt tab DXF

A flat weld-on tab with the bolt hole already engineered. Weld it on along its base, bolt to it. The bolt is the fuse: the plate is built past the bolt, so the failure you get is the one you designed for.

585 sizes, M3 to M20, in S275 steel, SS304 stainless and AL6082 aluminium. Every one is a free flat DXF for laser or waterjet, and every design is load-rated: from 1.69 to 94.08 kN.

Pick your size ↓Size it from your load

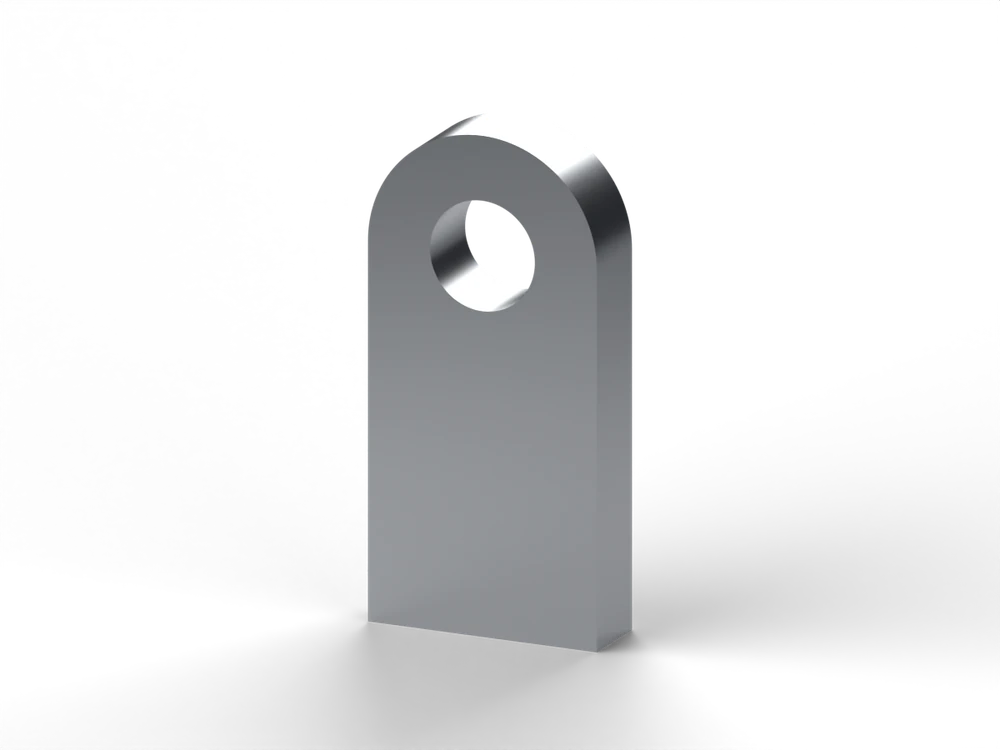

weld-on bolt tab, flat plate with engineered bolt hole

What's in the free DXF

True arcs, no splinesEvery curve is a true arc your CAM follows as an arc, not a chord or a polyline pretending to be a radius.
The finished profileThe tab outline and its bolt hole, in mm, at the exact length you pick.
Thin plate, full ratingMost bolt sizes come on up to 3 plate thicknesses. The thinner ones are widened so they still develop the full bolt rating.
Same file as the paid packThe free DXF is the exact file the engine wrote into the rated pack. It cannot drift from the drawing.

Every size · free DXF

585 sizes · 57 rated designs

M3 rated 1.69 kN6 sizes

Material	Plate	Rated load	Free DXF · length, mm (weld base to tip)
AL6082 aluminium	3 mm	1.69 kN	15 20 25 30 35 40

M4 rated 2.95 kN13 sizes

Material	Plate	Rated load	Free DXF · length, mm (weld base to tip)
AL6082 aluminium	3 mm	2.95 kN	15 20 25 30 35 40 45
AL6082 aluminium	4 mm	2.95 kN	15 20 25 30 35 40

M5 rated 4.77 to 5.45 kN36 sizes

Material	Plate	Rated load	Free DXF · length, mm (weld base to tip)
S275 steel	3 mm	5.45 kN	15 20 25 30 35 40
S275 steel	4 mm	5.45 kN	15 20 25 30 35
SS304 stainless	3 mm	4.77 kN	15 20 25 30 35
SS304 stainless	4 mm	4.77 kN	15 20 25 30 35
AL6082 aluminium	4 mm	4.77 kN	20 25 30 35 40 45 50 55
AL6082 aluminium	5 mm	4.77 kN	20 25 30 35 40 45 50

M6 rated 6.75 to 7.71 kN51 sizes

Material	Plate	Rated load	Free DXF · length, mm (weld base to tip)
S275 steel	4 mm	7.71 kN	20 25 30 35 40 45
S275 steel	5 mm	7.71 kN	15 20 25 30 35 40
S275 steel	6 mm	7.71 kN	15 20 25 30 35
SS304 stainless	4 mm	6.75 kN	15 20 25 30 35 40
SS304 stainless	5 mm	6.75 kN	15 20 25 30 35
SS304 stainless	6 mm	6.75 kN	15 20 25 30 35
AL6082 aluminium	5 mm	6.75 kN	20 25 30 35 40 45 50 55 60 65
AL6082 aluminium	6 mm	6.75 kN	20 25 30 35 40 45 50 55

M8 rated 12.29 to 14.05 kN69 sizes

Material	Plate	Rated load	Free DXF · length, mm (weld base to tip)
S275 steel	5 mm	14.05 kN	25 30 35 40 45 50 55 60 65
S275 steel	6 mm	14.05 kN	25 30 35 40 45 50 55 60
S275 steel	8 mm	14.05 kN	20 25 30 35 40 45 50
SS304 stainless	5 mm	12.29 kN	20 25 30 35 40 45 50 55
SS304 stainless	6 mm	12.29 kN	20 25 30 35 40 45 50
SS304 stainless	8 mm	12.29 kN	20 25 30 35 40 45
AL6082 aluminium	6 mm	12.29 kN	30 35 40 45 50 55 60 65 70 75 80 85 90
AL6082 aluminium	8 mm	12.29 kN	25 30 35 40 45 50 55 60 65 70 75

M10 rated 19.48 to 22.27 kN83 sizes

Material	Plate	Rated load	Free DXF · length, mm (weld base to tip)
S275 steel	6 mm	22.27 kN	30 35 40 45 50 55 60 65 70 75 80
S275 steel	8 mm	22.27 kN	25 30 35 40 45 50 55 60 65 70
S275 steel	10 mm	22.27 kN	25 30 35 40 45 50 55 60
SS304 stainless	6 mm	19.48 kN	25 30 35 40 45 50 55 60 65 70
SS304 stainless	8 mm	19.48 kN	25 30 35 40 45 50 55 60
SS304 stainless	10 mm	19.48 kN	25 30 35 40 45 50 55
AL6082 aluminium	8 mm	19.48 kN	35 40 45 50 55 60 65 70 75 80 85 90 95 100 110
AL6082 aluminium	10 mm	19.48 kN	30 35 40 45 50 55 60 65 70 75 80 85 90 95

M12 rated 28.32 to 32.37 kN92 sizes

Material	Plate	Rated load	Free DXF · length, mm (weld base to tip)
S275 steel	8 mm	32.37 kN	35 40 45 50 55 60 65 70 75 80 85 90 95
S275 steel	10 mm	32.37 kN	30 35 40 45 50 55 60 65 70 75 80
S275 steel	12 mm	32.37 kN	30 35 40 45 50 55 60 65 70 75
SS304 stainless	8 mm	28.32 kN	30 35 40 45 50 55 60 65 70 75 80
SS304 stainless	10 mm	28.32 kN	30 35 40 45 50 55 60 65 70
SS304 stainless	12 mm	28.32 kN	30 35 40 45 50 55 60 65
AL6082 aluminium	10 mm	28.32 kN	40 45 50 55 60 65 70 75 80 85 90 95 100 110 120 130
AL6082 aluminium	12 mm	28.32 kN	40 45 50 55 60 65 70 75 80 85 90 95 100 110

M16 rated 52.75 to 60.28 kN114 sizes

Material	Plate	Rated load	Free DXF · length, mm (weld base to tip)
S275 steel	10 mm	60.28 kN	45 50 55 60 65 70 75 80 85 90 95 100 110 120 130
S275 steel	12 mm	60.28 kN	45 50 55 60 65 70 75 80 85 90 95 100 110 120
S275 steel	16 mm	60.28 kN	40 45 50 55 60 65 70 75 80 85 90 95 100
SS304 stainless	10 mm	52.75 kN	40 45 50 55 60 65 70 75 80 85 90 95 100 110
SS304 stainless	12 mm	52.75 kN	40 45 50 55 60 65 70 75 80 85 90 95 100
SS304 stainless	16 mm	52.75 kN	35 40 45 50 55 60 65 70 75 80 85
AL6082 aluminium	12 mm	52.75 kN	60 65 70 75 80 85 90 95 100 110 120 130 140 150 160 170 180 190
AL6082 aluminium	16 mm	52.75 kN	50 55 60 65 70 75 80 85 90 95 100 110 120 130 140 150

M20 rated 82.32 to 94.08 kN121 sizes

Material	Plate	Rated load	Free DXF · length, mm (weld base to tip)
S275 steel	12 mm	94.08 kN	60 65 70 75 80 85 90 95 100 110 120 130 140 150 160 170
S275 steel	16 mm	94.08 kN	50 55 60 65 70 75 80 85 90 95 100 110 120 130 140
S275 steel	20 mm	94.08 kN	50 55 60 65 70 75 80 85 90 95 100 110 120
SS304 stainless	12 mm	82.32 kN	50 55 60 65 70 75 80 85 90 95 100 110 120 130 140
SS304 stainless	16 mm	82.32 kN	50 55 60 65 70 75 80 85 90 95 100 110 120
SS304 stainless	20 mm	82.32 kN	45 50 55 60 65 70 75 80 85 90 95 100
AL6082 aluminium	16 mm	82.32 kN	70 75 80 85 90 95 100 110 120 130 140 150 160 170 180 190 200 210 220
AL6082 aluminium	20 mm	82.32 kN	60 65 70 75 80 85 90 95 100 110 120 130 140 150 160 170 180 190

Click a length to download its DXF. The length is the weld base to the tip of the tab. One design is one bolt, one material and one plate; its rating is the same at every length.

Need it rated on paper?

The DXF is the geometry. The rated pack is the proof: the STEP solid, the rated drawing (A4 vector PDF with the load-rated data block) and the FEA report (stress, deflection, factor of safety, buckling and the method).

R150 per part, VAT included. See a real pack →

Questions

Is the DXF really free?

Yes. Every size on this page downloads as a flat DXF with no sign-up and no payment. The rated pack (STEP solid, rated drawing and FEA report) is the paid part, R150 including VAT.

What is a weld-on bolt tab?

A flat tab with the bolt hole already engineered, welded on along its base and bolted to. The bolt is the fuse: the plate is built past the bolt, so the failure you get is the one you designed for.

Which sizes are there?

Bolt sizes M3, M4, M5, M6, M8, M10, M12, M16, M20, in S275 steel, SS304 stainless and AL6082 aluminium, on up to 3 plate thicknesses per bolt and material. Thinner plate is widened so it still develops the full bolt rating.

What does the rated load mean?

The static axial pull the design is rated for, from 1.69 kN to 94.08 kN across this range. It is the same for every length of one design.

Is the free DXF itself rated?

The DXF is the geometry only. The rating covers the design and is documented in the rated pack. Making, welding and fitting the part are your check.
